Toolroom Milling Machines is a special type universal milling machines – can mill in the vertical and horizontal. It is also a knee-type milling machine – vertical screw performs vertical table feed. The table of the machine moves in the space of two directions. The vertical and longitudinal directions. Feed rate achieved by the movement of the beam (overarm), which is screwed to the head vertical. The head may be swivel, tiltable or universal. The distinguishing feature of this machine is the ability to remove the working table. In place of the table, then you can mount the device, for example: dividing head.
Tool milling machines are designed for various work tools and for the rich have special equipment. Equipped with the most will find:
Swivel working table
The table can be mounted instead of the basic machine table. The table has one or two axes. Both axes are scaled in the degrees. This allows milling at a specified angle.
Rotary table – Horizontal rotary table
The rotary table most often occurs as an additional attachment. It is mounted on the work table of the machine. Scaled in degrees or millimeters (inches). Allows, for example, drilling holes in the the division, turning the work piece by a predetermined angle etc.
Horizontal – vertical rotary table
In the vertical position works as a dividing head.
Overarm
We can distinguish two types of overarms. The first type is the overarm, which allow horizontal milling. We have a built-in version of the machine or external – instead of the head bolt upright. The second type, the auxiliary overarms on which are mounted attachment, for example, dividing head and tailstock.
Tailstock
Tailstock is support (steady) for long workpieces. Both centering and stiffens the whole system (dividing, work piece, tailstock).
Angular machine vice
Angular and swivel machine vice
Shaft vice
Dividing head
Overarm for dividing head and tailstock
Angular Rotary table
Slotting head
Boring head
Arbor support
Quill feed
Toolroom milling machines:

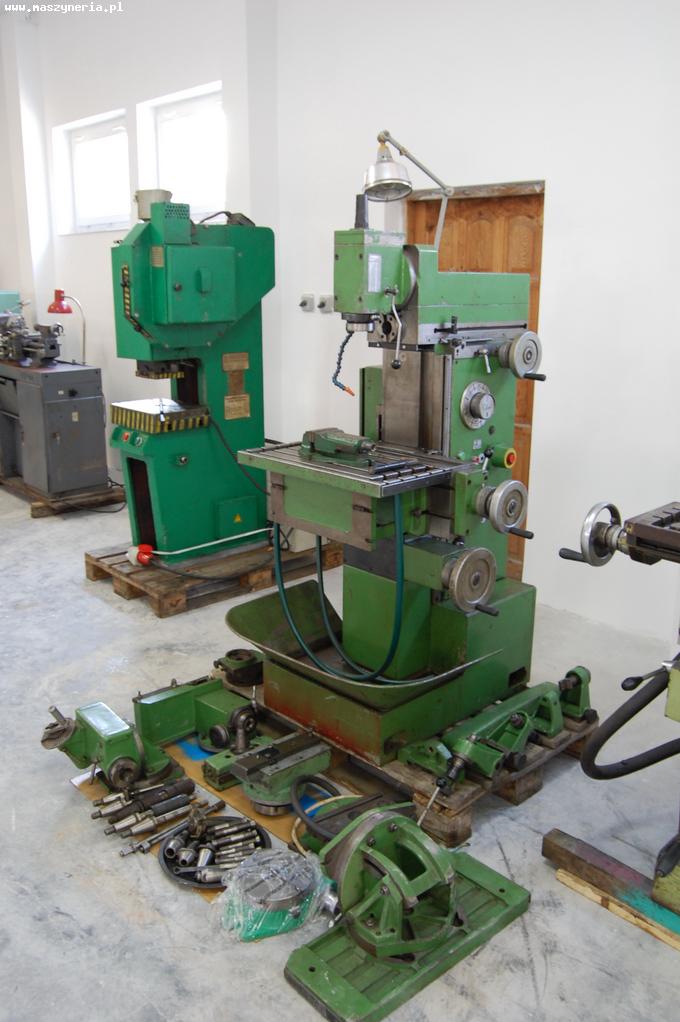

Toolroom milling machine: Avia FND 32 AT

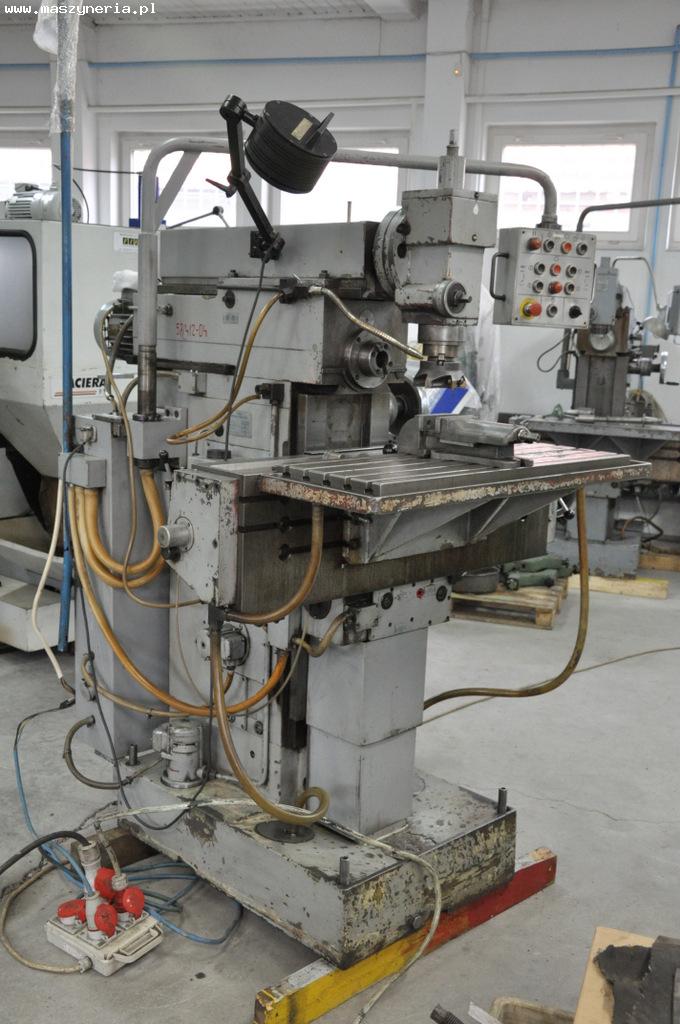

Toolroom milling machine: ALG 100 E

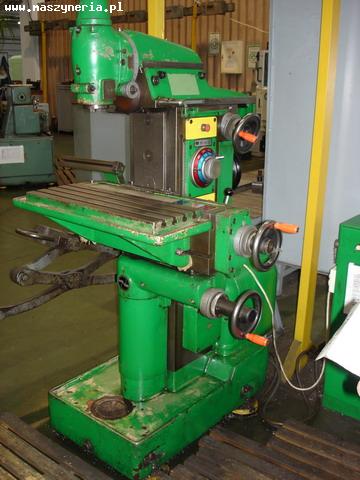

Toolroom milling machine: TOS FN 20

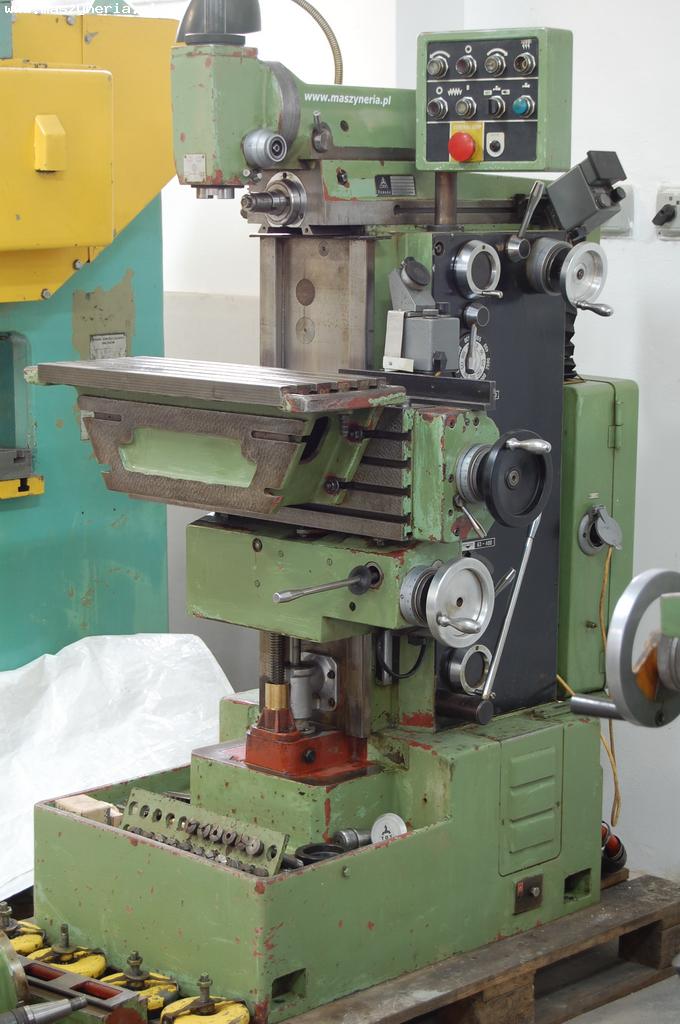

Toolroom milling machine: Infratirea Oradea FUS 22

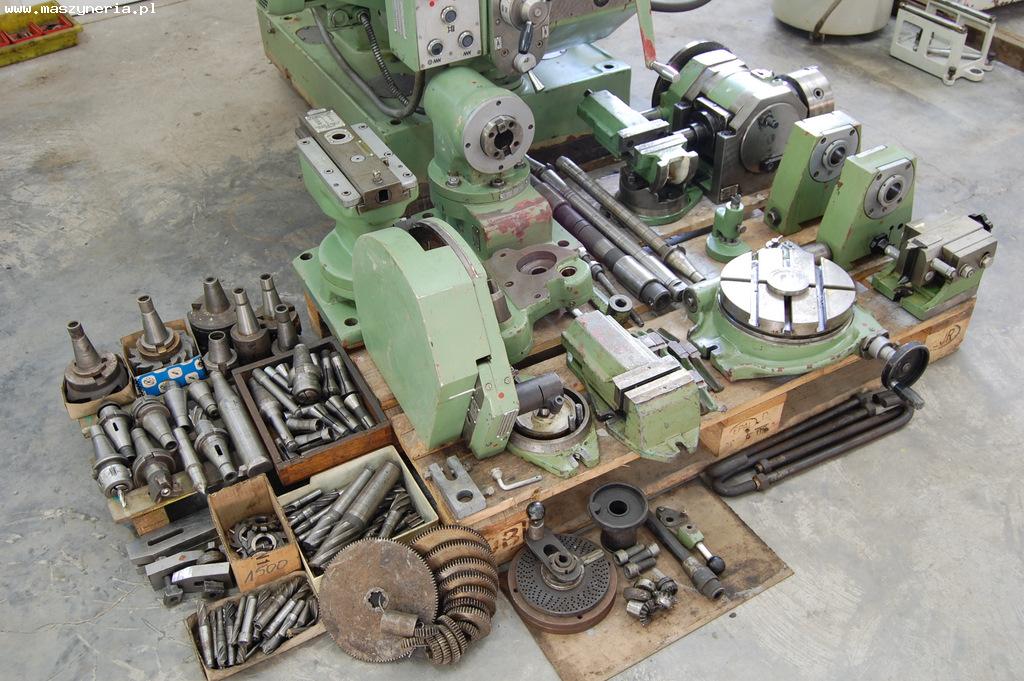

Toolroom milling machines equipment, devices and attachments:
Rotary tables: 1. Swivel rotary table 2. Flat, horizontal rotary table
Flat machines vice
1. Rotary table – horizontal 2. Dividing head 3. Flat machine vice 4. Gear – mechanical drive for dividing head or rotary table
Milling machines equipment: 1. Tailstock on overarm 2. External overarm for horizontal millng 3. Spindle 4. Flat machine vice 5. Vertical and horiyontal rotary table 6. Swivel working table 7. Cover 8. Vibroisolators 9. Dividing head 10. Slotting head

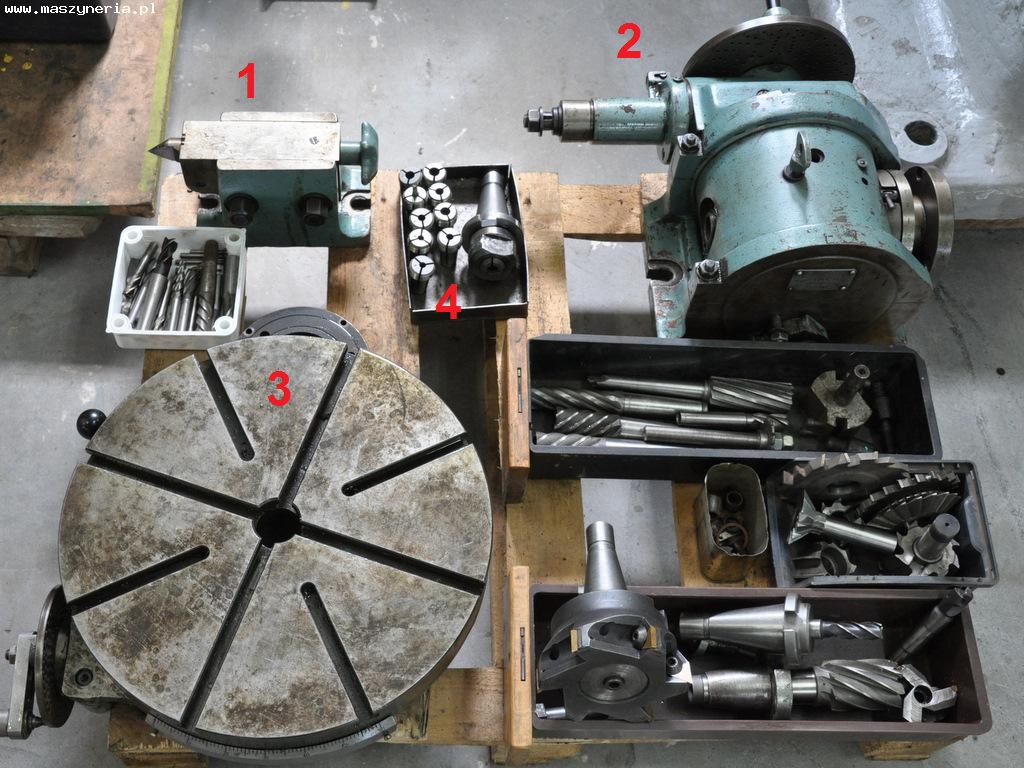

Equipment for millnig machines: 1. Tailstock 2. Dividing head 3. Rotary table – horizontal 4. Collet

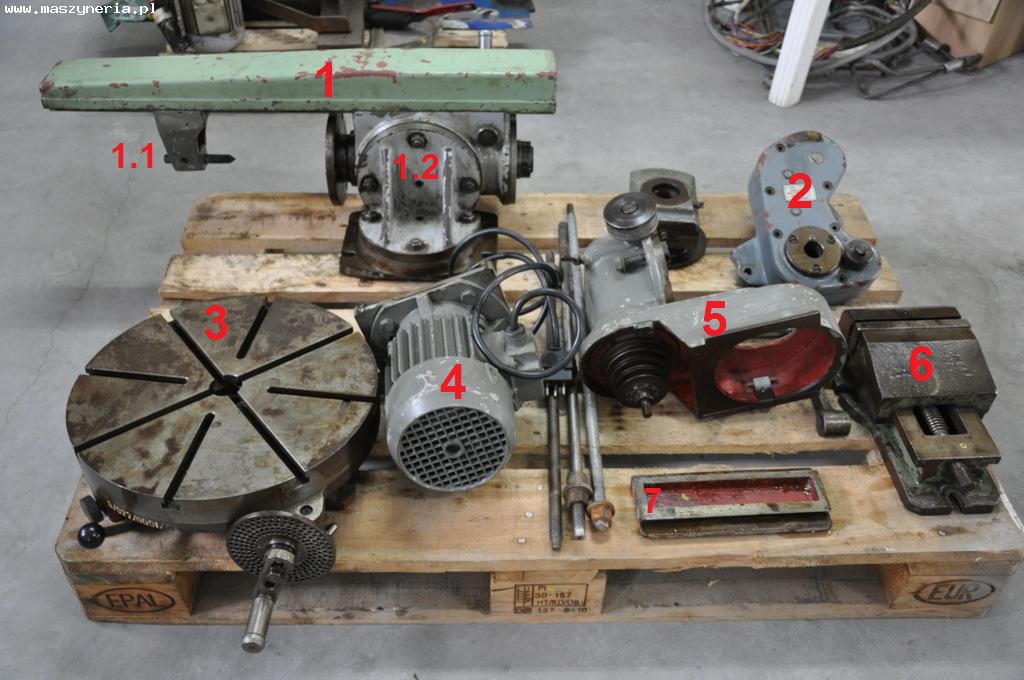

Milling machines devices: 1. External overarm for tailsock (1.1) and for dividing head (1.2) 2. Gearbox – mechanical drive for dividing head or rotary table 3. Rotary table 4. Motor for additional high speed head 5. High speed head 6. Flat Machines vice 7. Cover for (1.2) dividing head
Toolroom milling machines equipment, devices and attachment
Vertical heada with Quill feed
